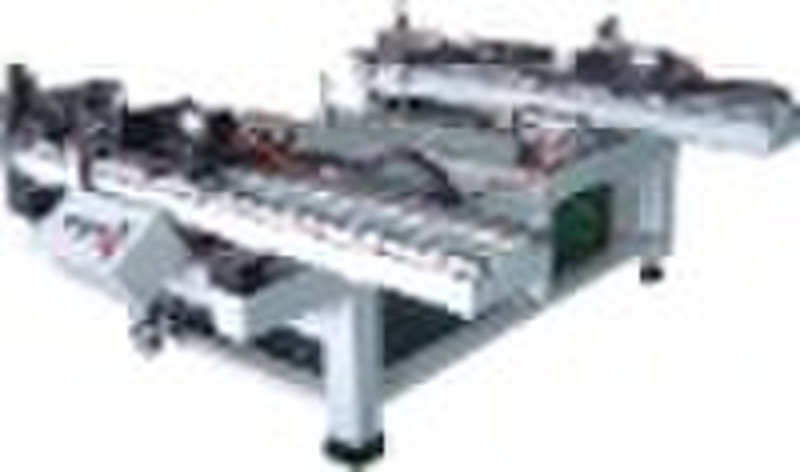

Framing machine for solar panel

Framed automatic machine code is angle-type aluminum alloy rectangular then the dedicated assembly equipment, from the cylinder, and steel linear guide assembled, finished laminated components can be achieved, the components of the aluminum alloy extrusion frame pressure position, a device to achieve a group box, aluminum alloy frame is fixed, which simplifies the operation of the strength of workers, save time, improve the quality of the product. Applicable to a variety of face profiles. Apply to have the screw aluminum alloy frame with screws. Group size box in the design of locking rack through positioning, and any adjustment can be carried out through the cylinder adjustable to fine-tune accuracy. Different groups of users to meet the requirements of the box size. Rational structural design of machine, high rigidity, to meet the user to adjust the box size requirements of different groups. Power: 220V 50HZ Air Source: 0.6 0.8 Mpa. Minimum Framed Dimension: 350X600X50 (35) mm Maximum Framed Dimension : 1100X2000X50 (35) mm Dimension: 3000X1700X920mm
